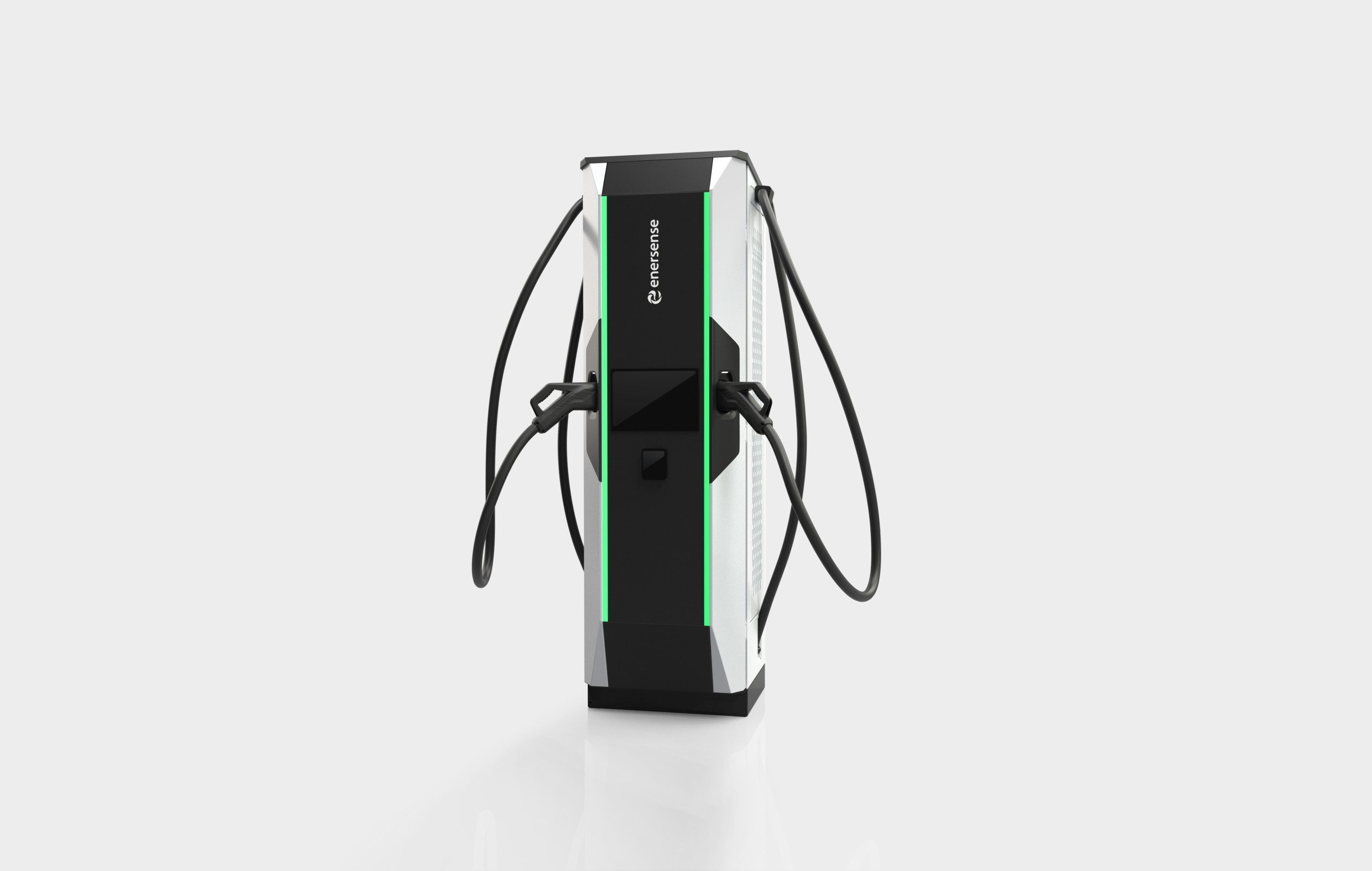

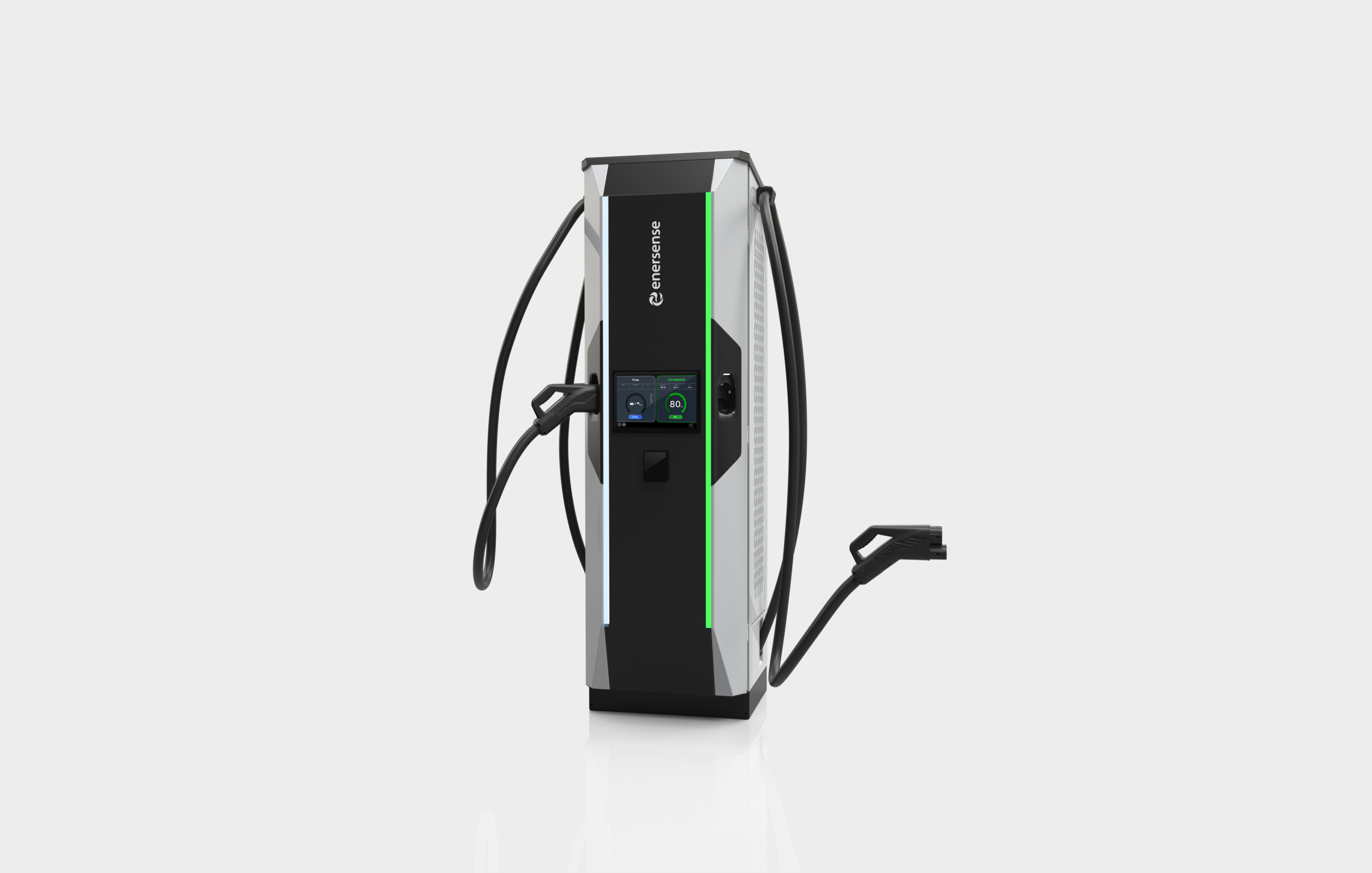

ECDC80-160kW charging stations

ECDC80-160kW is a stylish and modular DC-fast charging station that is suitable both for professional and public charging. One ECDC -station charges two electric vehicles simultaneously (2 x CCS1/2). Adaptive voltage range of 200- 920V enables also heavy equipment charging.

Two basic versions: 80kW and 160kW. Modular power increase in 40kW steps within the same device is possible up to 160kW. It is possible to pair multiple charging stations into an intelligent charging site with HPC capabilities. The total available output power is dynamically distributed among EV’s being charged, optimizing the charging time. Additional Booster power unit can be used for increasing the total power of the charging site (max 640kW per Booster). It is a modular and scalable DC fast charging solution.

ECDC -charging stations are delivered ready-for-use. Easy installation and commissioning minimise set-up costs. Charging stations can be branded to wished visual outlook.

Key Features

  • Adaptive voltage range 200-920V
  • Dynamic power distribution
  • Touch screen & LED lightning
  • MID-certified meters for €/kWh -invoicing (option)
  • Cable management (option)
  • Ground installation base (option)
Download brochure

User interface options

  • Touch screen
  • Mobile user interface

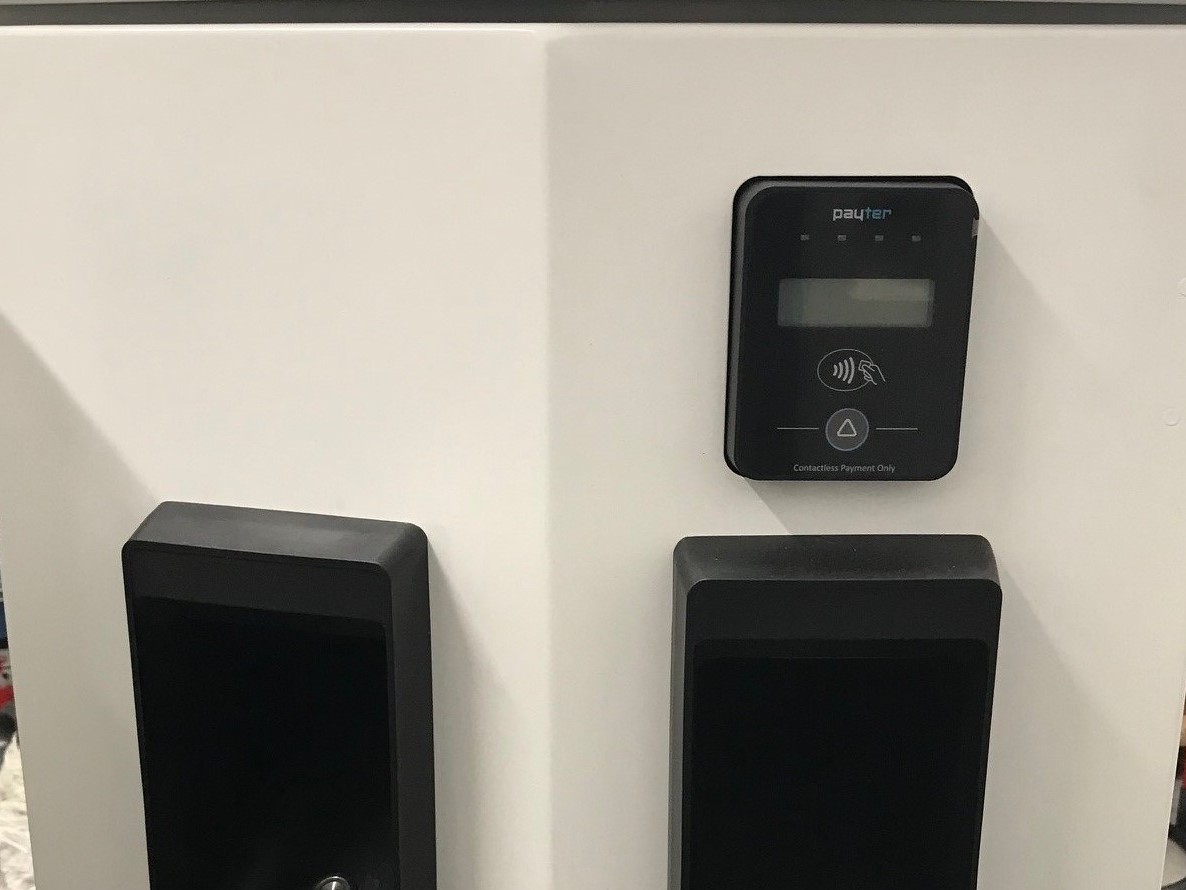

  • Bankcard reader – contactless payment
  • Payment kiosk
  • CPO’s own user interface

Applications

  • Service stations, highway rest stops, travel plazas and high turnover parking areas
  • Retail, grocery, mall, sport, culture, and recreational sites
  • Business and industrial parks
  • Offices, hospitals, and various communal sites
  • Logistics terminals and fleet charging depots
